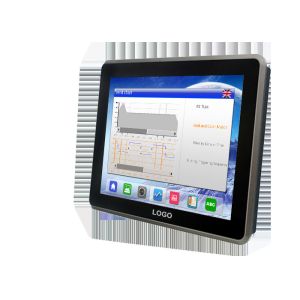

    High Resolution 9.7" Resistive Industrial PC Touch Screen HMI With Slim Metal Enclosure

    Ask Lasest Price
    Brand Name : FLEXEM
    Model Number : OME-FE4097X-B
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 5000 pcs/week
    Delivery Time : 1-7 business days after payment confirmed
    • Product Details
    • Company Profile

    High Resolution 9.7" Resistive Industrial PC Touch Screen HMI With Slim Metal Enclosure

    * 9.7" 1024×768 TFT LCD.
    * Metal enclosure and with only 38mm thickness.
    * Industrial Isolated Power Supply module, 4 Serial Ports.
    * Wide temperature, working under -20~70℃.
    * The mainboard is with spray coating treatment, adapt to harsh industrial environment.


    Colors16-bit Color
    Ethernet10M/100M
    Input PowerDC 24V, Input Range:DC 18V~28V
    Brightness350cd/㎡
    SD CardSupporting
    Power ProtectionIsolated Power Supply,Protected From Thunderstrike And Surging

    1.Power Terminals
    Pin1DC24V
    Pin20V
    Pin3FG
    2.COM1/COM3
    Pin1Rx-(B)
    Pin2RxD_PLC (COM1 RS232)
    Pin3TxD_PLC (COM1 RS232)
    Pin4Tx-
    Pin5GND
    Pin6Rx+(A)
    Pin7RxD_PLC(COM3 RS232)
    Pin8TXD_PLC(COM3 RS232)
    Pin9Tx+
    3.COM2/COM4
    Pin1Rx-(B)
    Pin2RxD_PLC (COM2 RS232)
    Pin3TxD_PLC (COM2 RS232)
    Pin4Tx-
    Pin5GND
    Pin6Rx+(A)
    Pin7RxD_PLC(COM4 RS232)
    Pin8TXD_PLC(COM4 RS232)
    Pin9Tx+
